Google Vertex AI

Guide

This guide walks through setting up Google Vertex AI language models for use with Onyx.

Google Vertex AI and Google AI Studio serve the same models. However, Vertex AI has enterprise-grade features that may be useful for your organization.

Authentication Methods

Onyx supports two authentication methods for Google Vertex AI:

Service Account JSON — upload a downloaded service account key file. This works with Onyx deployed inside or outside Google Cloud and is the default flow covered in the guide below.
Workload Identity (GKE) — authenticate using your GKE cluster’s ambient credentials, with no key file to generate or store. See Workload Identity (GKE) below.

A standalone Vertex AI API key (sometimes called a Vertex Express Mode key) is not supported. Onyx’s Vertex AI provider only accepts a Service Account JSON credential or Workload Identity — see the FAQ below for details and an alternative.

Service Account JSON

Create a Service Account for Onyx

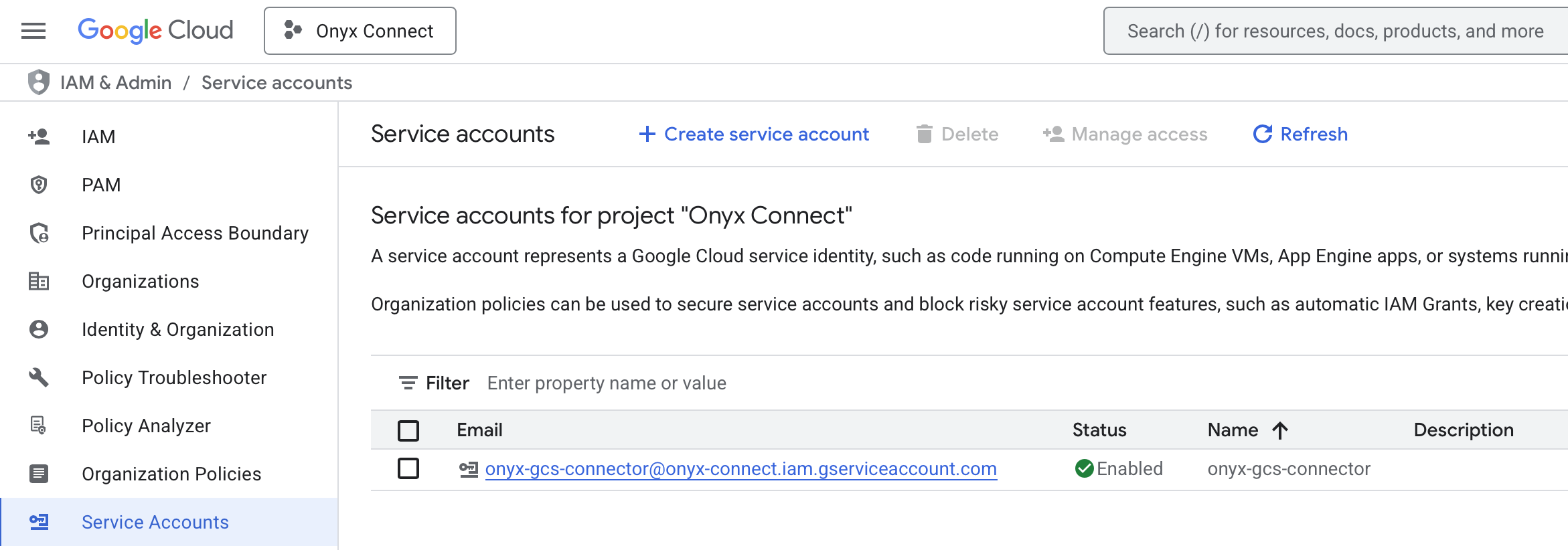

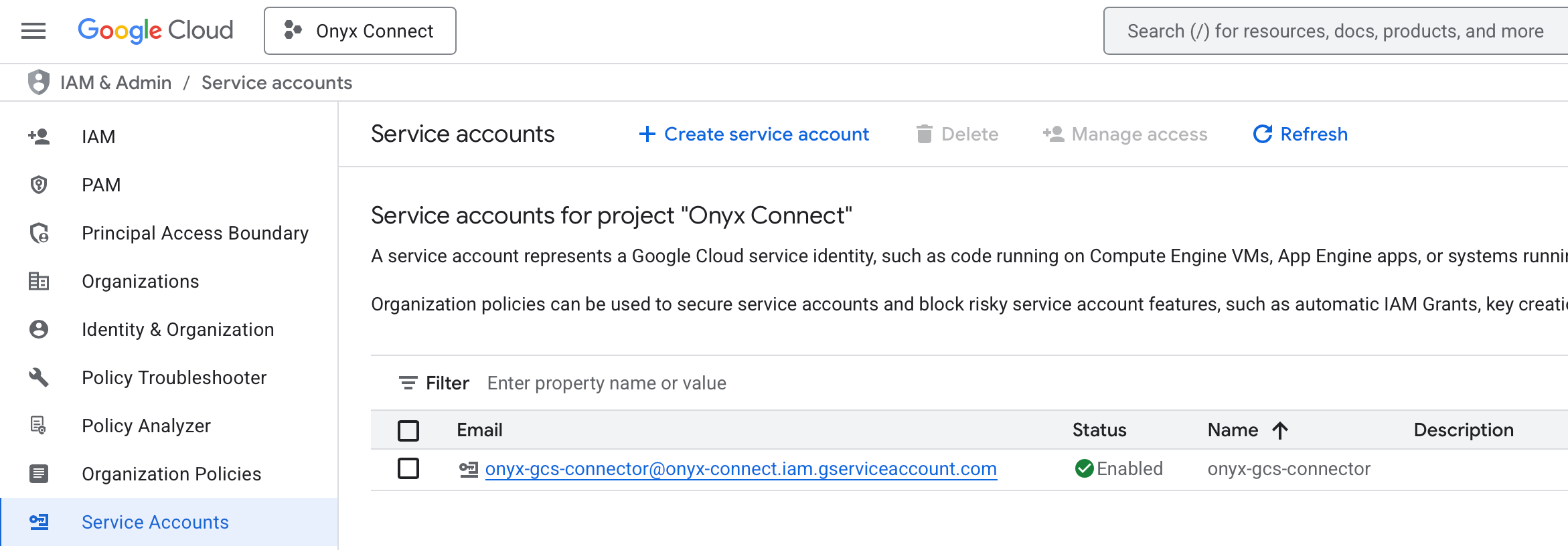

Go to the Google Cloud Console Service Accounts PageSelect your project and click Create Service Account.Give your Service Account a name and a description.On the Permissions tab, grant the service account the Agent Platform User role.

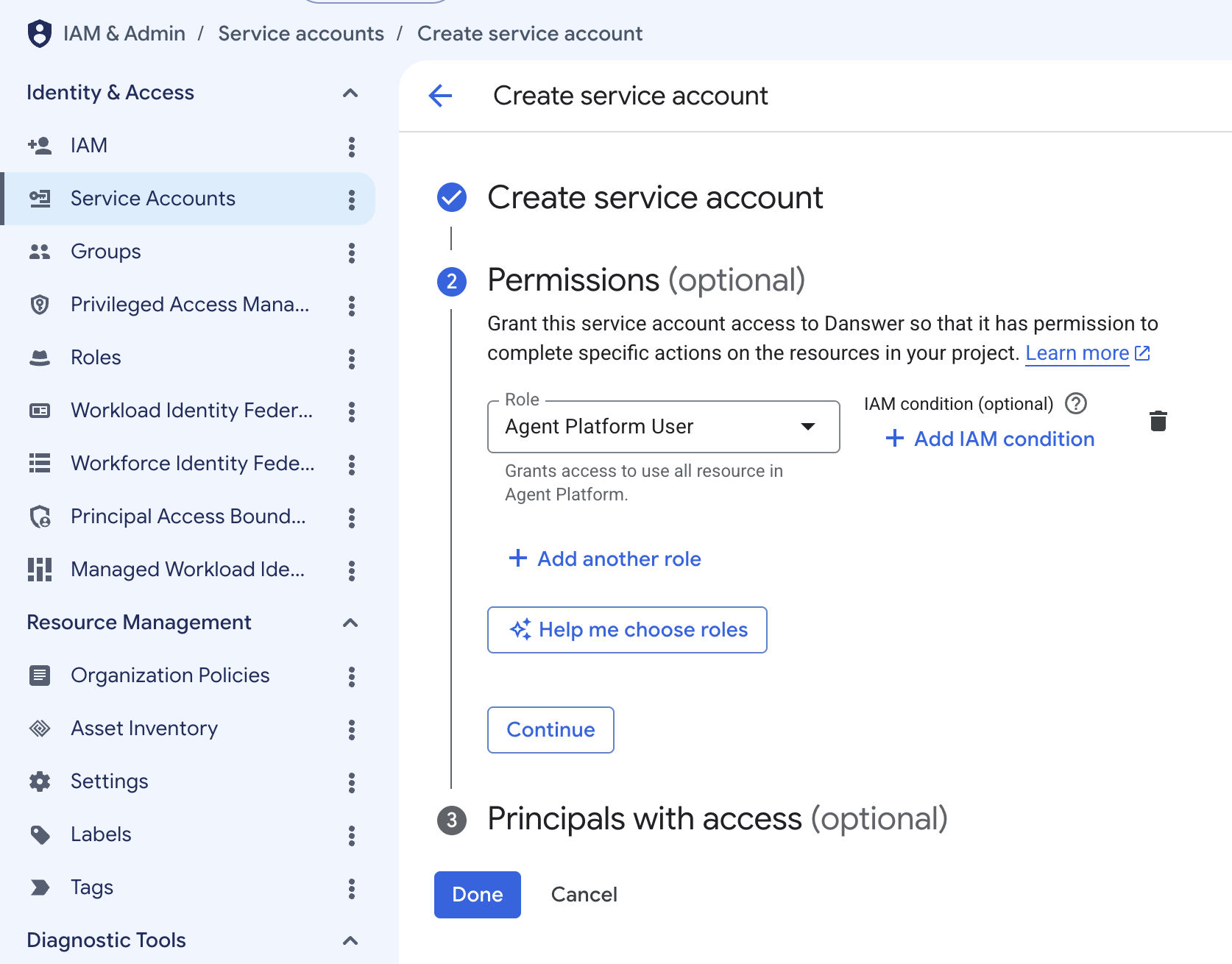

Google Cloud Console Service Account Configuration

Create a New Key for the Service Account

Click your newly created Service Account → Keys → Add Key → Create new key.Select JSON as the key type and click Create. The key will be automatically downloaded to your computer.

Navigate to Language Models

Access the Admin Panel from your user profile icon, then navigate to Configuration → Language Models.

Configure Google Vertex AI

Select Google Cloud Vertex AI from the available providers.Give this configuration a Display Name.For the Authentication Method, select Service Account JSON and upload your JSON key to the Credentials File field.If relevant, specify a Location.

Choose Visible Models

In the Advanced Options, you will see a list of all models available from this provider. You may choose which models are visible to your users in Onyx.Setting visible models is useful when a provider publishes multiple models and versions of the same model.

Designate Provider Access

Lastly, decide whether the provider should be public to all users in Onyx.If set to private, the provider’s models will be available to Admins and User Groups you explicitly assign the provider to.

Workload Identity (GKE)

For Onyx deployed on GKE, you can authenticate to Vertex AI using GKE Workload Identity Federation. With this method, Onyx picks up the pod’s ambient GCP credentials automatically (via Google’s Application Default Credentials) and no key file is ever created or stored.

Prerequisites

Onyx is already deployed on GKE.
Billing is enabled in the project where you will use Vertex AI.
For the CLI examples, authenticate the Google Cloud CLI and configure kubectl for your Onyx cluster. The deployment administrator needs permission to enable APIs and grant IAM roles; cluster or Kubernetes service account permissions are only needed when changing those settings.

The first two steps are one-time deployment setup. If your Onyx pods already use Workload Identity and have Vertex AI access, continue to Navigate to Language Models. The Service Account JSON method above does not require these Kubernetes changes.

Check Workload Identity is enabled

Autopilot: Workload Identity Federation for GKE is already enabled.Standard: Open the GKE clusters page, select your cluster, and open Details → Security. Workload Identity must show Enabled, with the namespace PROJECT_ID.svc.id.goog using your GKE project’s ID.

GKE cluster details showing Workload Identity enabled, with the workload identity namespace redacted

For Standard clusters, under Nodes, open each node pool that runs Onyx. Its Security → GKE Metadata Server must also show Enabled.

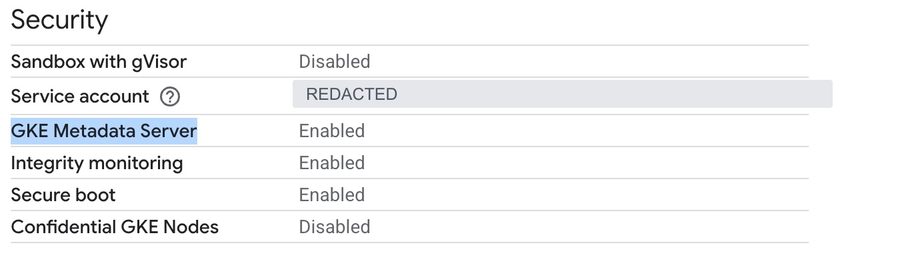

GKE node pool security settings showing GKE Metadata Server enabled, with the node service account redacted

If Workload Identity or the metadata server is disabled

In Details → Security, edit Workload Identity, select Enable Workload Identity, and save. For each Onyx node pool, click Edit → Security, select Enable GKE Metadata Server, and save. Enabling Workload Identity on the cluster does not enable it on existing node pools.The equivalent commands are:

export GKE_PROJECT_ID="my-project"
export CLUSTER_NAME="my-onyx-cluster"
export CLUSTER_LOCATION="us-central1"

gcloud container clusters update "$CLUSTER_NAME" \
  --location "$CLUSTER_LOCATION" --project "$GKE_PROJECT_ID" \
  --workload-pool "${GKE_PROJECT_ID}.svc.id.goog"

gcloud container node-pools update NODE_POOL_NAME \
  --cluster "$CLUSTER_NAME" --location "$CLUSTER_LOCATION" \
  --project "$GKE_PROJECT_ID" --workload-metadata GKE_METADATA

Use the cluster’s region for a regional cluster or its zone for a zonal cluster. Replace NODE_POOL_NAME and repeat for every node pool that runs Onyx.

Updating a node pool changes how all its workloads obtain Google Cloud credentials. Review workloads that rely on the node’s service account before changing the pool, or move Onyx to a new pool with Workload Identity enabled.

Give the Onyx pod identity Vertex AI access

Enable the Vertex AI API in the project where you will use the models.Use the Kubernetes service account already assigned to the Onyx API server and any workers that call models. To find it, replace onyx with your namespace:

kubectl get pods --namespace onyx \
  -o custom-columns=NAME:.metadata.name,SERVICE_ACCOUNT:.spec.serviceAccountName

Grant Agent Platform User (roles/aiplatform.user, formerly Vertex AI User) in the Vertex AI project to that account’s Workload Identity principal. This grants access directly to the pod identity, without creating a Google Cloud service account or JSON key.If the Kubernetes account is already linked to a Google Cloud service account, grant the role to that Google Cloud account instead and keep the existing link. Repeat the grant for each distinct identity used by the API server and workers.

Grant access directly with gcloud

Replace these example values. GKE_PROJECT_ID identifies the cluster’s project; VERTEX_PROJECT_ID identifies the project where Vertex AI is enabled. They can be the same. The Helm chart uses the default Kubernetes service account when serviceAccount.create is false and serviceAccount.name is empty; use the account shown on your running pods.

export GKE_PROJECT_ID="my-project"
export VERTEX_PROJECT_ID="$GKE_PROJECT_ID"
export NAMESPACE="onyx"
export KSA_NAME="default"
export GKE_PROJECT_NUMBER="$(gcloud projects describe "$GKE_PROJECT_ID" --format='value(projectNumber)')"
export WORKLOAD_POOL="projects/${GKE_PROJECT_NUMBER}/locations/global/workloadIdentityPools/${GKE_PROJECT_ID}.svc.id.goog"
export KSA_PRINCIPAL="principal://iam.googleapis.com/${WORKLOAD_POOL}/subject/ns/${NAMESPACE}/sa/${KSA_NAME}"

gcloud services enable aiplatform.googleapis.com --project "$VERTEX_PROJECT_ID"

gcloud projects add-iam-policy-binding "$VERTEX_PROJECT_ID" \
  --member "$KSA_PRINCIPAL" \
  --role roles/aiplatform.user --condition=None

Alternative: use a linked Google Cloud service account

Service account impersonation is another supported setup. Use this if your deployment already uses a linked Google Cloud service account, or your organization requires one. The binding and annotation below are required for impersonation; they are not needed for direct access.Check for an existing link:

kubectl get serviceaccount KSA_NAME --namespace NAMESPACE \
  -o jsonpath='{.metadata.annotations.iam\.gke\.io/gcp-service-account}'

Replace KSA_NAME and NAMESPACE. If an email is returned, reuse that account rather than replacing its link. Otherwise, open the Service Accounts page and create an account named onyx-vertex-ai, without creating a JSON key.Set the values below to your deployment. For an existing account, set GSA_EMAIL to the returned email and GSA_PROJECT_ID to the project that owns that account.

export GKE_PROJECT_ID="my-project"
export VERTEX_PROJECT_ID="$GKE_PROJECT_ID"
export GSA_PROJECT_ID="$GKE_PROJECT_ID"
export GSA_EMAIL="onyx-vertex-ai@${GSA_PROJECT_ID}.iam.gserviceaccount.com"
export NAMESPACE="onyx"
export KSA_NAME="default"

gcloud services enable aiplatform.googleapis.com --project "$VERTEX_PROJECT_ID"
gcloud services enable iamcredentials.googleapis.com --project "$GSA_PROJECT_ID"

gcloud projects add-iam-policy-binding "$VERTEX_PROJECT_ID" \
  --member "serviceAccount:${GSA_EMAIL}" \
  --role roles/aiplatform.user --condition=None

gcloud iam service-accounts add-iam-policy-binding "$GSA_EMAIL" \
  --project "$GSA_PROJECT_ID" --role roles/iam.workloadIdentityUser \
  --member "serviceAccount:${GKE_PROJECT_ID}.svc.id.goog[${NAMESPACE}/${KSA_NAME}]"

kubectl annotate serviceaccount "$KSA_NAME" --namespace "$NAMESPACE" \
  "iam.gke.io/gcp-service-account=${GSA_EMAIL}" --overwrite

Both the IAM binding and Kubernetes annotation are required for this method. Repeat them for distinct Kubernetes accounts used by the API server and workers. The Google Cloud account also needs permissions for other Google Cloud services those pods use, such as Cloud Storage. The node pool’s service account is a separate node identity.If Helm creates the Kubernetes account, preserve the annotation in your Helm values:

serviceAccount:
  create: true
  name: onyx
  annotations:
    iam.gke.io/gcp-service-account: onyx-vertex-ai@my-project.iam.gserviceaccount.com

For this example, use KSA_NAME="onyx" in the binding. If you change the account assigned to pods, apply the Helm values and roll out the API server and workers. Standard cluster pods must run on node pools with the GKE Metadata Server enabled. See Google’s service account linking guide.

Navigate to Language Models

Access the Admin Panel from your user profile icon, then navigate to Configuration → Language Models.

Configure Google Vertex AI

Select Google Cloud Vertex AI from the available providers.Give this configuration a Display Name.For the Authentication Method, select Workload Identity (GKE).

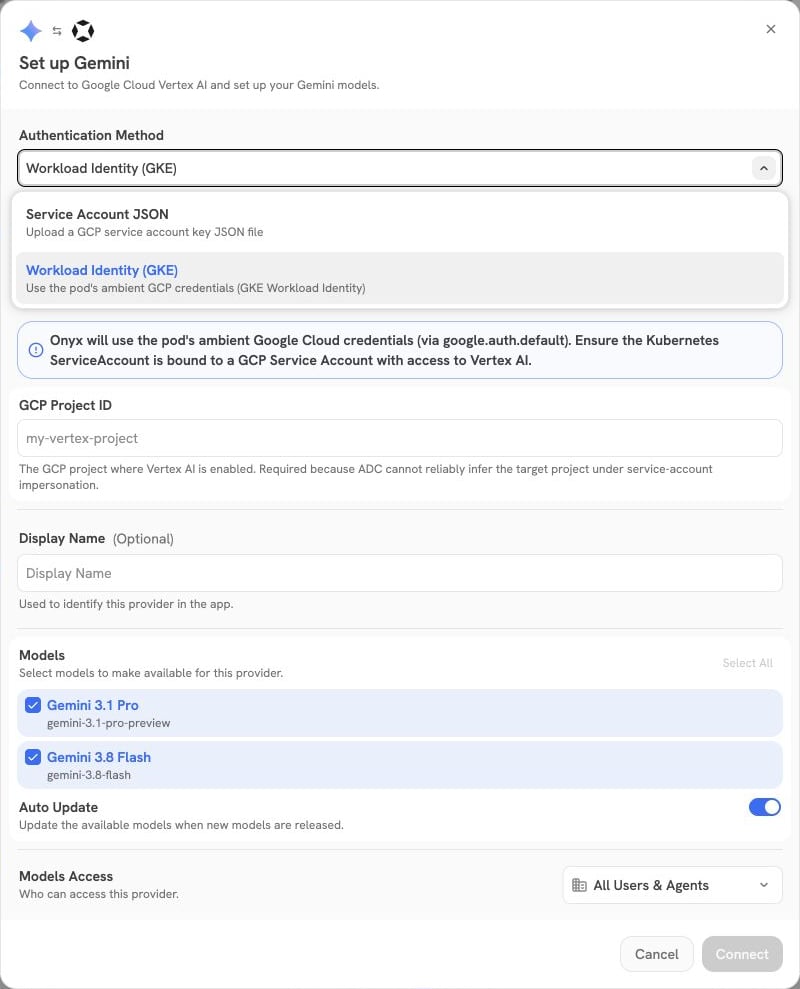

Authentication Method dropdown with Workload Identity (GKE) selected and highlighted

Enter the GCP Project ID where Vertex AI is enabled. This is required because Application Default Credentials cannot reliably infer the target project under service account impersonation.Set Google Cloud Region Name to a location supported by your models. The default is global; this is independent of your GKE cluster’s location.

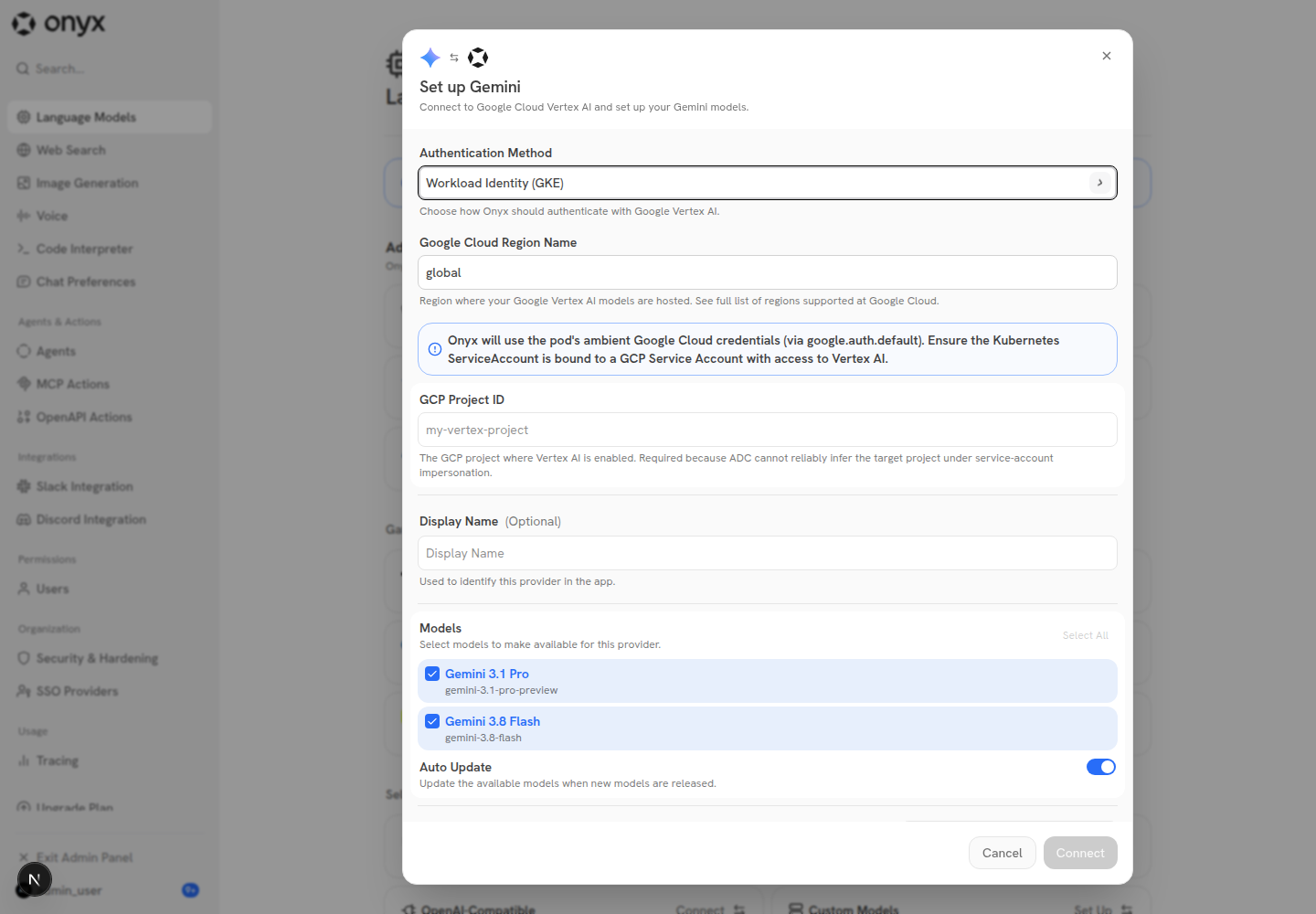

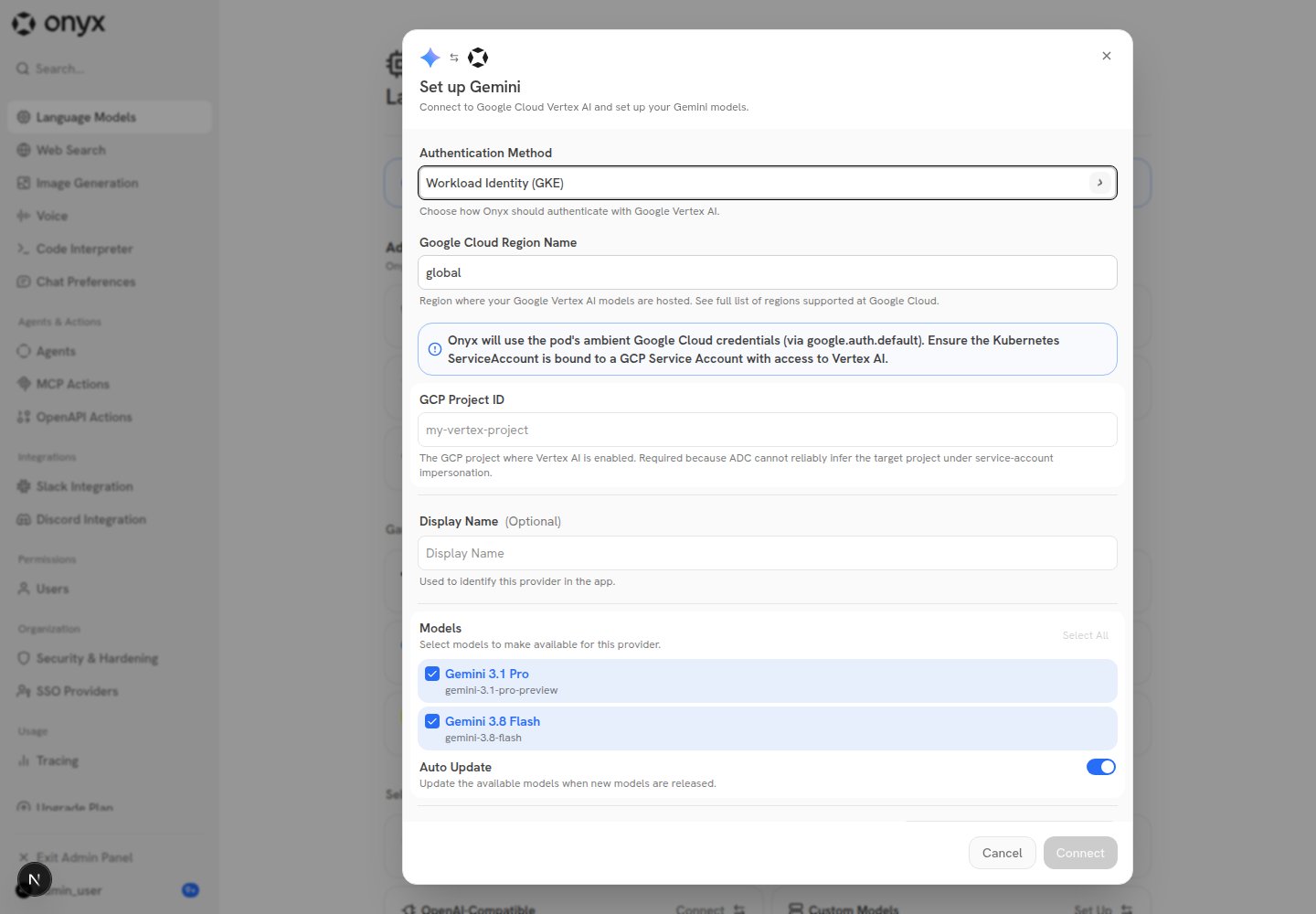

Workload Identity (GKE) selected, showing the ambient-credentials notice and GCP Project ID field

No credentials file is needed. Select your models and configure provider access below, then click Connect.

Choose Visible Models

Designate Provider Access

Lastly, decide whether the provider should be public to all users in Onyx.If set to private, the provider’s models will be available to Admins and User Groups you explicitly assign the provider to.

Verify the connection

Start a chat using one of this provider’s models and send a message. A successful response confirms that Onyx can obtain credentials and call Vertex AI.

If the connection fails

If authentication fails, check the identity on the running API server pod and its node pool’s metadata server. For direct access, check the IAM grant to the Kubernetes principal. For service account impersonation, check the iam.gke.io/gcp-service-account annotation and the roles/iam.workloadIdentityUser binding. A permissions error can also mean that roles/aiplatform.user was granted in a different project from the GCP Project ID in Onyx, or that the Vertex AI API is disabled there. Allow a few minutes for new IAM grants to propagate before retrying.

FAQ

Does Onyx need to run on Google Cloud or GKE to use Vertex AI?

No. Vertex AI is accessed through Google Cloud APIs, and Onyx can call those APIs from another cloud or an on-premises deployment using Service Account JSON, with the required permissions and network access. The GKE steps above apply to credentials supplied automatically to Onyx pods by the GKE metadata server. Remotely accessing a GKE cluster with kubectl does not give an external Onyx deployment those pod credentials. Onyx’s Workload Identity (GKE) option uses Application Default Credentials under the hood. Google also supports Workload Identity Federation for workloads outside Google Cloud. That requires a separate setup that makes credentials available to the Onyx API server and workers; it is outside the scope of this GKE walkthrough.

Can I use a Vertex AI API key instead of a service account?

No. Today, Onyx’s Vertex AI provider supports only Service Account JSON or Workload Identity (GKE) as authentication methods — a standalone Vertex AI API key (Vertex Express Mode) is not accepted. If you just want to authenticate with a plain API key, you can instead add a Custom LLM provider using the gemini provider name, which routes through the Google AI Studio Gemini Developer API using an API key. See the Custom Inference Provider guide.

Google AI Studio is a separate product from Vertex AI, with different billing and data-handling terms. AI Studio API keys are not interchangeable with Vertex AI credentials.

When configuring this alternative, use the Custom provider type with the provider name set to gemini — not the generic OpenAI-Compatible provider type pointed at Gemini’s OpenAI-compatible endpoint. Onyx appends a forced /v1 suffix to the OpenAI-Compatible provider’s base URL, which breaks that endpoint. The forced /v1 suffix does not apply to the gemini provider name, so it is unaffected.
