The Confluence connector indexes pages that its connector account can view. It also indexes page comments, labels, last editors, hierarchy, and attachments when you enable attachment processing. After the first full sync, Onyx checks for updates every 30 minutes by default. You can change the refresh interval in the connector settings.

​
Choose your deployment

Atlassian ended support for Confluence Server on February 15, 2024. Onyx still uses the Data Center integration path for Server, but Atlassian recommends migration to Cloud or Data Center. See Atlassian’s Server end-of-support notice.

​
Configure the connector in Onyx

First, complete the authentication steps in the guide for your deployment. Then open Admin Panel > Connectors, select Confluence, and follow these steps.
1

Add the credential

Select Create New. Enter a clear name, the connector account, and the token from your deployment guide.
  • Cloud: enter the Atlassian account email and its API token.

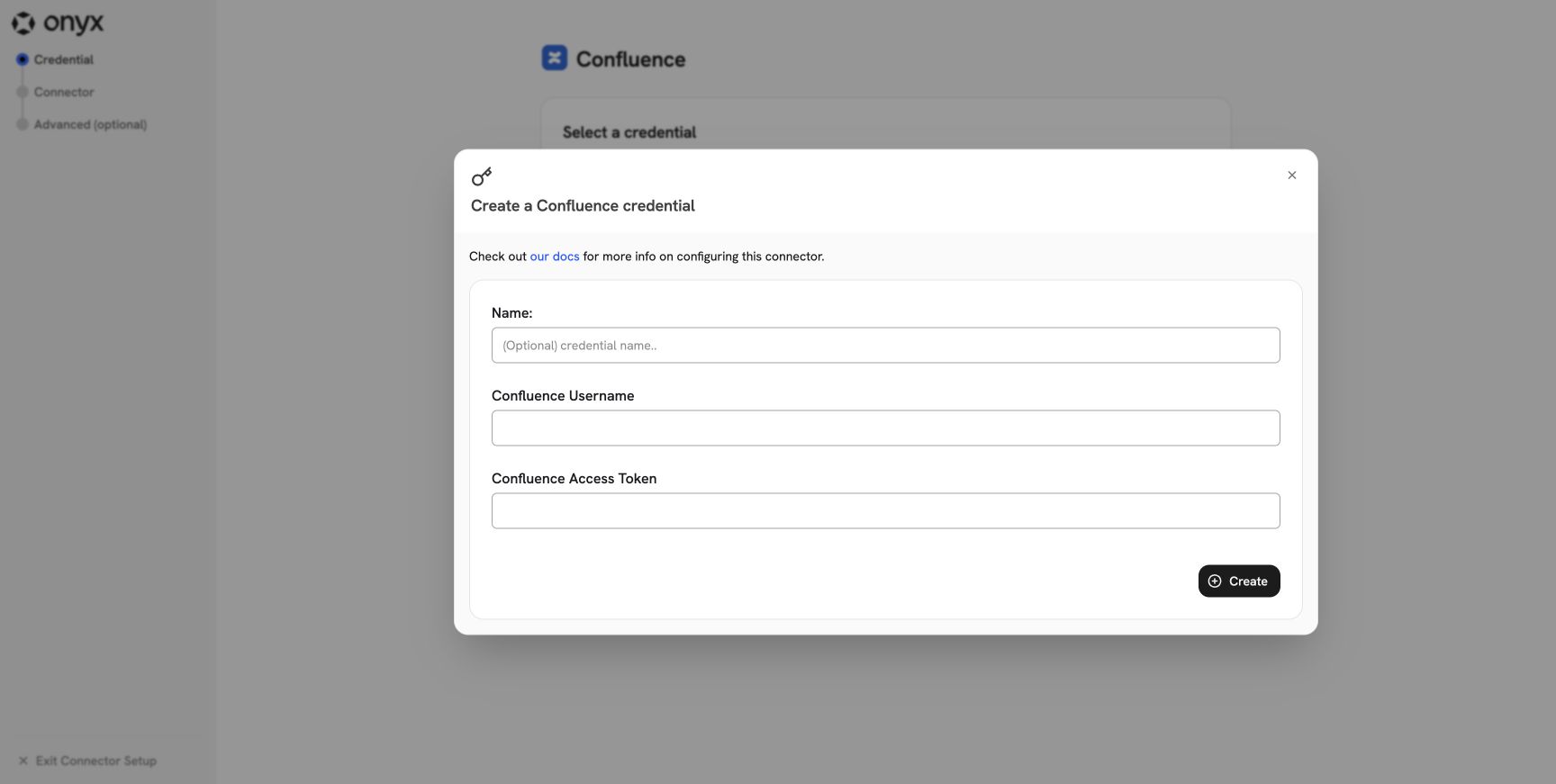

  • Data Center or Server: enter the PAT owner’s username and the PAT. Onyx sends the PAT as a bearer token. Confluence credential form
2

Set the deployment and URL

Enter a connector name and configure the deployment fields:
  • Is Cloud: Enable this only for Confluence Cloud.
  • Wiki Base URL: For Cloud, include /wiki. For Data Center or Server, enter the site root or configured context path. Do not add /rest/api.

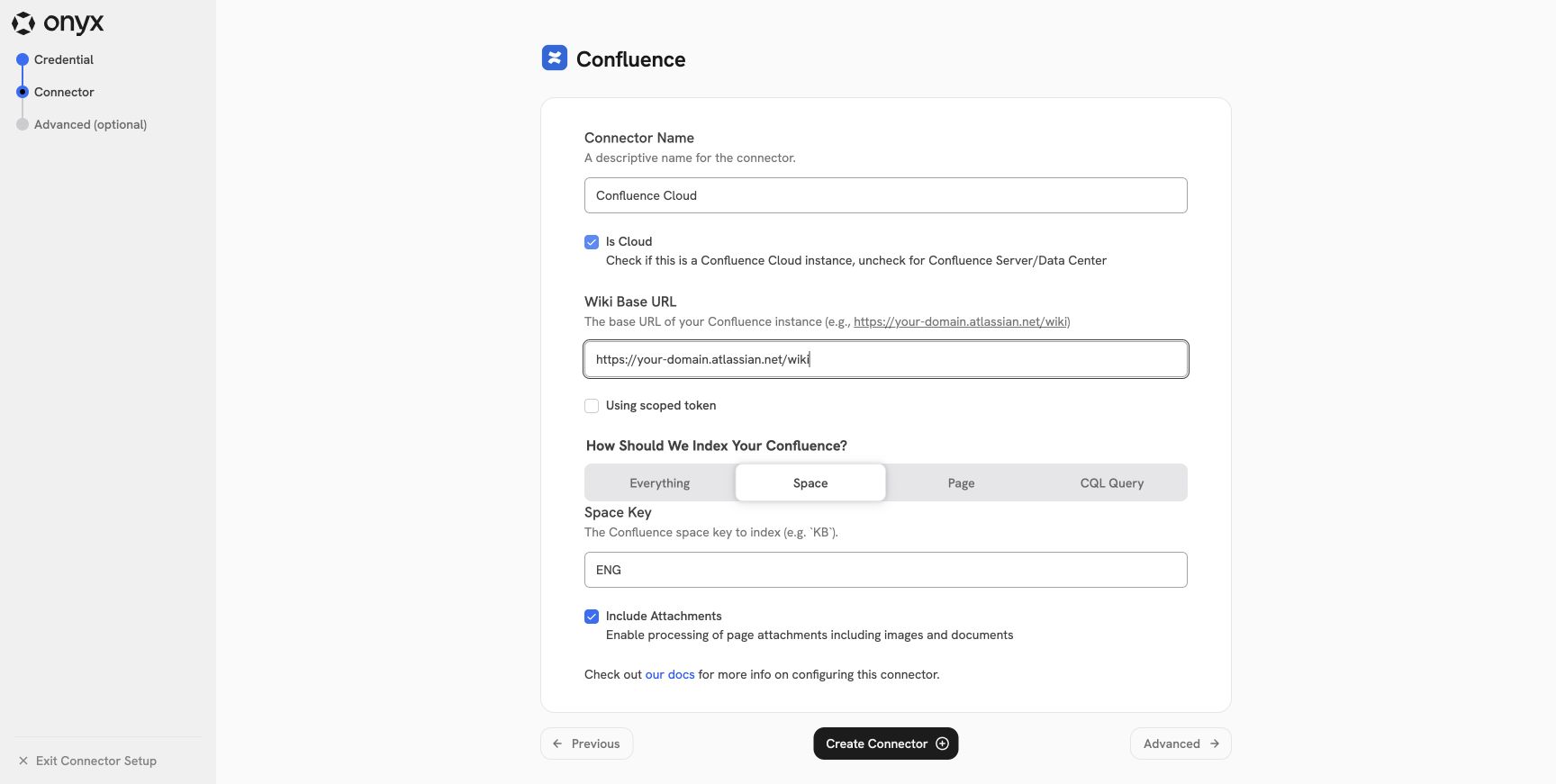

  • Using scoped token: Enable this only for a Confluence Cloud API token that you created with scopes. Leave it disabled for an unscoped Cloud token and for Data Center or Server. Confluence Cloud connector settings
3

Choose what to index

Choose one scope:A CQL query must use type=page as its only content-type filter. Do not add a lastmodified filter. Onyx adds its own time filters during incremental sync. A filter in your query can conflict with them. Onyx still retrieves comments and enabled attachments for the returned pages. See Atlassian’s CQL documentation.
4

Choose attachment processing

Keep Include Attachments enabled to extract supported document attachments from indexed pages. Image attachment analysis also requires the Onyx image extraction and analysis setting. Disable attachment processing when you want only page text and comments.
5

Choose access controls

Select Advanced and choose an access type:
  • Public makes every indexed document available to every Onyx user.
  • Private limits every indexed document to the connector’s assigned Onyx groups.
  • Sync Permissions mirrors Confluence space permissions, page restrictions, and inherited ancestor restrictions.
Permission sync requires Onyx Enterprise Edition or Onyx Cloud. It maps Confluence users to Onyx users by email and syncs Confluence groups. Read the deployment guide before you enable it.
6

Create and verify

Select Create Connector. The connector validates the credential by reading at least one visible space.Open the connector’s status page and wait for the first indexing attempt to complete. Then search for a known page in Onyx. Open the result’s source link and confirm that it points to the expected Confluence page.

​
Permission sync behavior

Onyx applies the closest read restriction in this order:
  • A page restriction.
  • The closest restricted ancestor page.
  • The page’s space permissions.
Onyx maps users by email address. A missing, hidden, masked, or different email address prevents a Confluence identity from matching an Onyx user. Test at least one page with each restriction pattern that your site uses.

​
